uC 8051 makes effective frequency counter

by: Fazal Pathan, Physical Research Laboratory, Ahmedabad, India

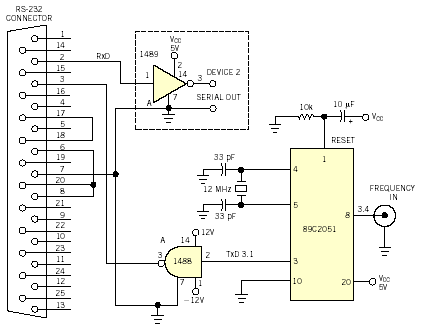

Figure 1 shows an efficient and costeffective frequency counter using an Atmel 89C2051 mC Reference 1). The design can use any mC of the 8051 family. The circuit counts frequency and sends the count to a PC via the serial port. The signal connects to pin 3.4 of the mC. The TTL-compatible output of the mC drives the 1488, which converts the output to RS-232 voltage levels. The output of the 1488 connects to the RxD pin on the serial port of the PC. In this design, only unidirectional communication exists between the mC and the PC. But you can use the TxD line to control another device.The assembly routine in Listing 1 shows initialization of the timer, counter, and interrupts. The main program sets up T0 to count external pulses and T1 to count time in the autoreload mode 2 (Reference 2). The main program monitors the main-program flag, frqflg, until the flag is set. Then, the main program sends the counted frequency to the PC’s port using mode 1. First, it sends the special character “L” to recognize the following 3 bytes as valid data. Then it sends the value of register R2, which is the most significant byte of the counter value. This value increments every time the counteroverflows.Then, the main program sends the values of registers TH0 and TL0 to the PC’s port. After sending the data, the program again jumps to the main routine, in which it clears the timer and counter and reinitializes them, and then starts counting again. The mC counts the value in hexadecimal format; the PC can then convert it to decimal format. In this example, we used a 12-MHz crystal and a baud rate of 2400 bps.However, you can use higher clock frequencies and baud rates, because the mC can operate to 24 MHz.We use the system in Figure 1 for photon counting in astronomical instrumentation.We give thanks to the Department of Space,Government of India, for material support and BG Anandarao,PhD, for encouragement.

( Download File : frequency1.zip )

;program counts the pulse and transmite trhough p3.1 pin only
;without handshaking ;signal.
           Frqflg equ 0fh ; use a bit flag to signal main program
           Baudnum equ 0f3h ; number loaded in TH1 for 2043,8 baudrate
Freq:
           Org 0h
           Mov sp,#30h ;set stack above register/ bit area
           Sjmp over ;jump over T1 interrupt address
           ;
           org 0bh
           Inc r2
           Reti
           ;
           org 1bh ;T1 overflow flag interrupt to here
           setb psw.3 ;swicht to register bank1
           inc r0 ;count R0 up until overflow at 00h
           cjne r0,#00h,checktime; check to see if time is up
           inc r1 ;or inc R1 when R0 rolls over
checktime:
           cjne r1,#27h,goback ;check r1 for terminal count
           cjne r0,#10h,goback ;check r0 for terminal count
           clr tr0 ;stop T0
           clr tr1 ;stop T1 time before T0 stopped =
           setb Frqflg ;signal main program that T0 = freq
Goback:
           clr psw.3 ;return to bank 0 register
           Reti ;return to main program
Over:      mov tcon,#00h ;all timers stopped-flags reset
           Setb psw.3 ;select register bank 1 and reset r0, r1
           Mov r0,#00h
           Mov r1,#00h
           Clr psw.3 ;return to bank 0
           Mov tmod,#25h ;T1=mode 2 timer,T0=mode 1 counter
           Mov tl1,#9ch ;start TL1 at 9ch
           Mov th1,#9ch ;TH1=156d, overflows in 100 clocks
           Mov tl0,#00h ;zero T0
           Mov th0,#00h
           Clr Frqflg
           Mov tcon,#50h
           Mov ie,#88h
Simulate:
           Jbc Frqflg,getfrq
           Sjmp simulate
Getfrq:
           anl pcon,#7fh
           Anl tmod,#30h
           Orl tmod,#20h ;set timer T1 as an 8 bit autoreload
           Mov th1,#baudnum
           Setb tr1 ; run T1
           Mov scon,#40h
           Mov sbuf,# 'L'
Wait:      jbc ti,next
           Sjmp wait
Next:      mov sbuf,r2 ;set UART to mode1
wait1:     jbc ti,next1
           sjmp wait1
next1:     mov sbuf,th0 ;transmit content of the TH0
wait2:     jbc ti,next2 ;wait for T1 set before nect transmission
           sjmp wait2 ;else poll flag again
next2:     mov sbuf,tl0 ;now transmit TL0
wait3:     jbc ti,over ;and wait until the ti flag is set
           sjmp wait3
           end
